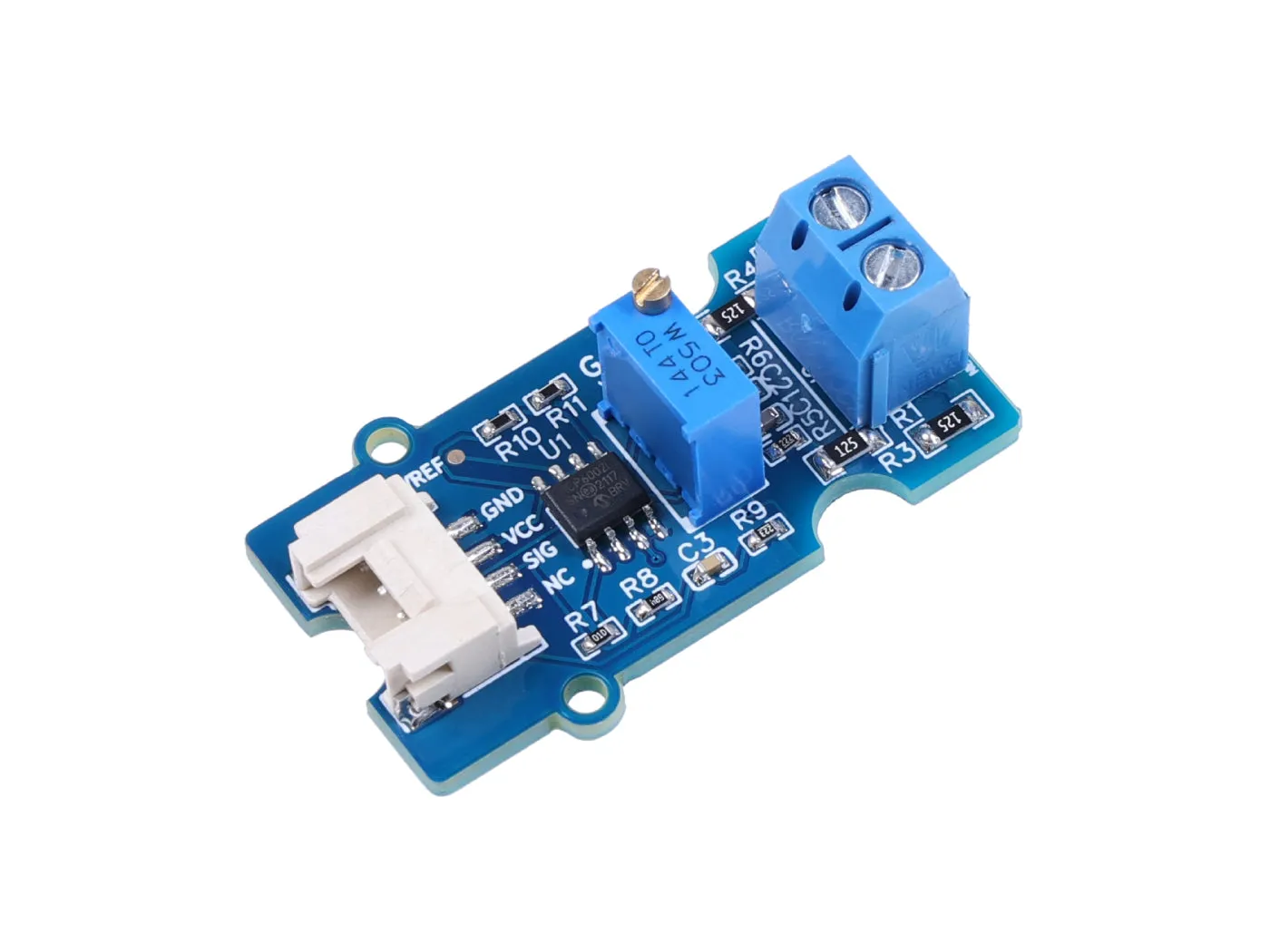

Grove AC Voltage Sensor is perfect for measuring RMS AC voltages for accurate DIY energy meters. It has adjustable gain for different voltage inputs(120V-240V AC) and it supports a 5 - 3.3v DC power supply

Features

• High adaptability： It has gained for different voltage inputs (120V-240V AC)
• High compatibility: Using Analog as output, it can be compatible with many different development boards
• Accurately measure the voltage changes generated by high power loads when they are turned on
• Powerful IC: Equipped with MCP6002 core with Analog output
• Easy to Use: Just sample plug and play which allows you to easily add wireless capabilities.

Here we are introducing this AC voltage sensor and its story! Christopher Mendez is a Dominican Electronics Engineer, since his beginnings, he has applied his skills to developing IoT solutions, smart homes devices, energy metering, and more, he considers that electrical energy is crucial in our lives, and it is very important to know how we use it in order to be aware of how to do it prudently. This is why he decided to create this Grove compatible Voltage Sensor, to approach people in the energy metering field.

The AC Voltage Sensor has been licensed to Seeed to manufacture and sell. Christopher Mendez will provide the tech support and Seeed will fulfill the order with hardware quality guaranteed. If you are interested in Seeed Licensed Products Program, pls click to find out more.

If you need tech support you can contact Christopher with email

Description

This Grove Voltage Sensor is perfect for measuring RMS AC voltages for accurate DIY energy meters. It features adjustable gain for different voltage inputs (120V-240V AC), the fact that this sensor output is analog lets you integrate it with many different development boards, letting you decide on the sampling frequency, and ADC resolution without limitations. It’s accurate enough to measure the variations in voltage that high-power loads generate when they are turned on, making it a great choice for creating smart energy meters.

Specification

Application

• AC Voltage Meter.
• Smart Energy Monitoring.
• Machine Learning.
• Loads Identification.
• Home automation.
• IoT projects.

Hardware Overview

Parts List
