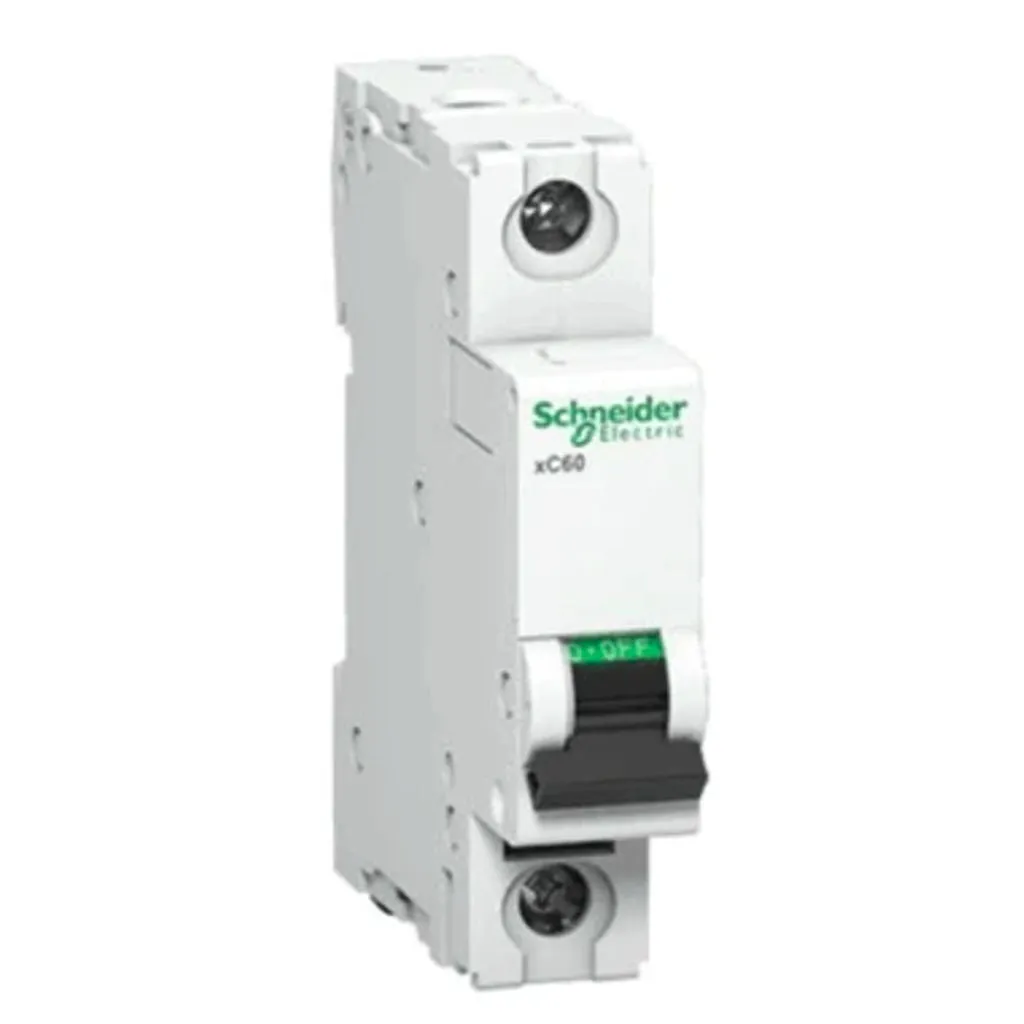

Product Description
-
Breaking Capacity as per IEC 60898 and IS/IEC 60898-1, Icn = 10kA
-
Breaking Capacity as per IEC 60947-2, Icn = 15kA, upto 40A
-
Can be used for DC application upto 60V per pole
-
Higher system performance with optimized cost
-
Increased System Continuity
-
Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism
-
Ease, Speed and Flexibility of installation - Biconnect, Line-Load Reversible
-
Field-fittable auxiliaries for advance protection and monitoring
-
Positive Contact Indication for assurance of disconnection
Product Specifications
|
Brand |
Schneider |
|
Model No |
A9N1P16B |
|---|---|
|
Range of product |
Acti 9 |
|
Sub Type |
xC60 Type |
|
Rated Current (A) |
16 A |
|
Pole |
Single Pole |
|
Curve Type |
B-Curve |
|
Energy Limiting Class |
Class 3 |
|
Relative humidity |
95 % |
|
Standard |
IEC/EN 60947-2 |
|
Network type |
AC; DC |
|
breaking capacity code |
A |
|
Module Width (18 mm/module) |
1 |
|
Breaking Capacity (kA) |
10 kA |
|
utilisation category |
Category A conforming to EN/IEC 60947-2 |
